High Friction Surfacing

High Friction Surfacing

Arkil Ltd has developed a high friction material for anti-skid applications.

The product has been developed and tested under the guidelines for High Friction Surfacing (HFS) and is now in full production at its High Polished Stone Value (HPSV 72+) stone quarry in Lispole, Dingle, Co. Kerry. The PSV of the stone is 72+ which makes it comparable to the market standard calcined bauxite which is also 72+. Arkil Ltd has focused in on this rare stone quality and is marketing this new product as an alternative for HFS.

The disadvantages of Calcined Bauxite:

  • Carbon Footprint as its is a natural source its production energy costs are much lower and not therefore market price index is not as volatile to energy markets
  • Price Competitiveness due to lower production costs as it’s produced from a natural rock source
  • Arkil Ltd  is strategically located to supply UK/US and European markets also much lower carbon footprint in production and transport

Typical Applications:

  • Approaches to Roundabouts
  • Junctions
  • Traffic Lights
  • Pedestrian Crossings
  • Cycle Lanes
Stone Properties Typical Value/Range
Grading Size 1.0-3.35mm
PSV (Polish Stone Value) 75+
AAV (Aggregate Abrasion Value) 5-9
SFC Sideway Force Co-efficient) 0.7+
SRV (Skid resistance value) 70+
Texture depth(Sand Patch Method) 1.0mm-1.2mm
LA Abrasion test 18-20

Wehner Schulze is a durability test which measures the skid resistance property of the material against wear stress

No of wheel passes WS Co-Efficient
3,000 0.86
90,000 0.77
180,000 0.74

Our high friction material & how it works

HFS stands for High Friction Surfacing. Also known as anti-skid surfaces, these are pavement surface treatment systems that are composed of “tough” polish-resistant, abrasion-resistant aggregates bonded to the pavement surface using a resin. Although both “hot applied” and “cold applied” HFS processes have been used throughout the world. Cold applied HFS are the most commonly used in the U.S.

High friction surfaces are used primarily for restoring or enhancing the skid resistance of a pavement surface, but can also be used for lane delineation, bike paths, traffic calming or for decorative purposes.

HFS Technical Specification

Our high friction surfacing has been tested for all the regular stone properties such as polished stone values, aggregate abrasion value, Los Angeles etc and has also been subjected to the Wherner Schultze method of testing for skid resistant values of road surfacing in the Transportation Road Laboratory in France where it has performed very favourably with the competition.

Get the facts



High Friction Surface (HFS) Facts

  • HFS enables the skid resistance on existing pavements to be restored
  • In instances where friction demand is highest, HFS is an ideal solution for “spot treatment” of a pavement
  • In comparison to replacement or removal of existing pavements, HFS is an effective, low cost treatment
  • HFS installation can be achieved in short timeframes (4 – 6 hours)
  • HFS adds minimal thickness (1/8″ – 1/4″) – which is an advantage in circumstances where overhead clearance is limited
  • Installation can be applied to a wide variety of pavement types
  • HFS can be coloured in order to enhance delineation



Uses And Applications

Our high friction surfacing can be used in various locations such at dangerous bends, pedestrian crossings, approaching roundabouts, school areas, high stress areas , slip roads to motorways , steep inclines and junctions.

Further Advice on applications and uses can be obtained by contacting us where we will be happy to assist you with any technical advice or assistance.

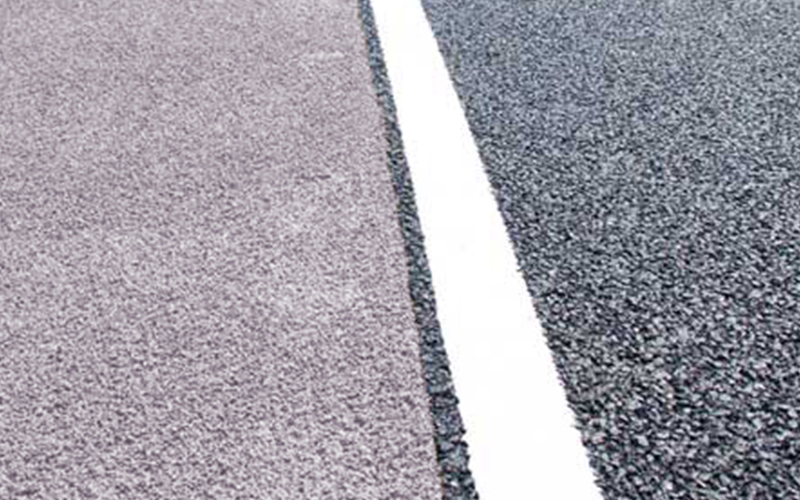

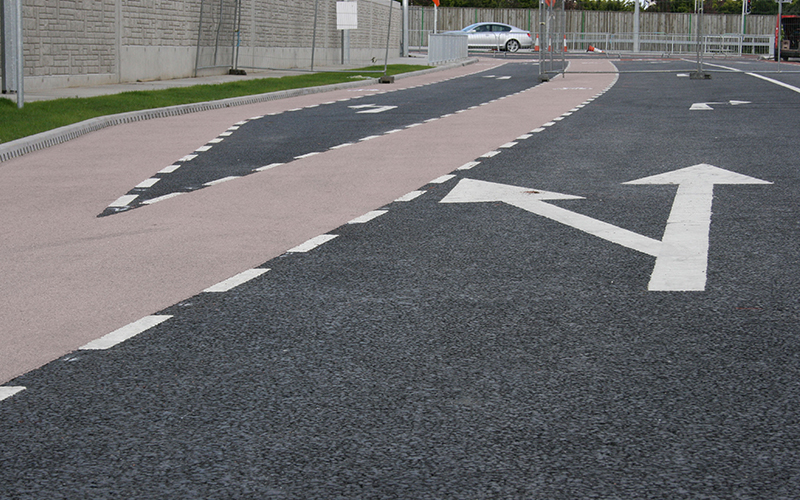

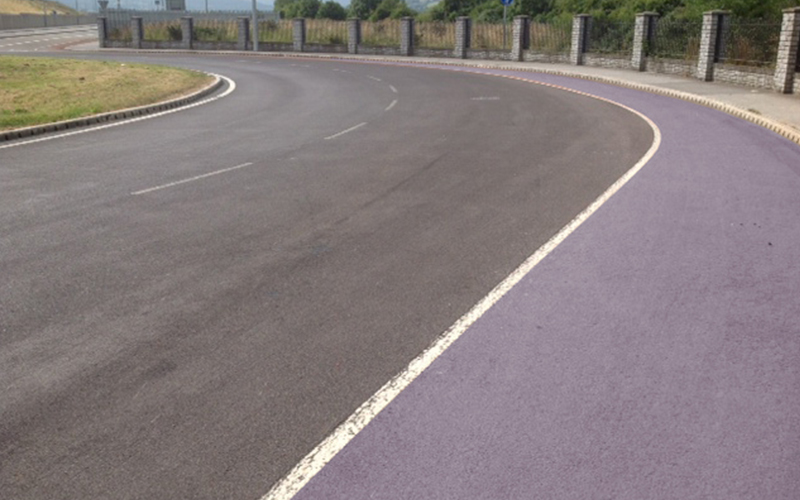

Applied Surfacing



View more images in our Gallery >>

Accreditation

Arkil Ltd. has been certified by Certification Europe to international standard ISO 14001 Environmental Management System, ISO 9001 Quality Management System & OHSAS 18001 Occupational, Health & Safety Management Certifications.



Please visit Certification Europe’s website for further information on the benefits of ISO 14001 Environmental & OHSAS 18001 Occupational, Health & Safety Management Certifications.



Factory Production Control/NSAI I.S. EN 206-1:2002 Certificate



Arkil Ltd is also certified by the NSAI to EN13108-21 Factory Production Control which is a European wide standard for the manufacture of Bituminous Materials. We are audited by the NSAI on an annual basis .Materials are sampled and tested to ensure conformity to the required specification in our on site laboratorys by our fully trained Laboratory Technicians.

View Certification

For further information regarding HFS please contact our sales team



Find out more about our high friction surfacing product

The natural anti-skid alternative to Calcined Bauxite
